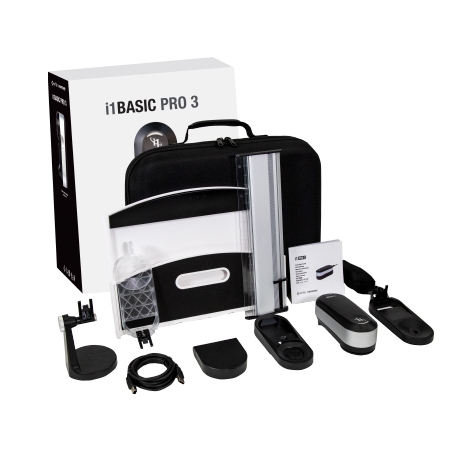

Description of X-Rite i1Basic Pro 3

• i1Basic Pro 3 is an easy-to-use spectral color measurement, including display and projector profiling and output quality assurance at an affordable price.

  i1Pro 3: i1® technology (holographic diffraction grating with 128 pixel diode array) with built-in wavelength control.

  I1Basic Pro 3 calibrates and matches up to four displays connected to a single computer and unlimited displays connected to different computers for constant viewing.

  With i1Basic Pro 3, you can quickly and easily create custom monitor and projector profiles that ensure the colors you see are true, verify soft corrections and output quality with built-in quality assurance (QA) tools, and easily capture and manage spot colors.



  Benefits


  - Offers a custom, full-spectrum LED light source that enables single-pass scanning and improves device reliability and accuracy.
  - Measures M0, M1 and M2 simultaneously in a single pass, cutting scan time in half.

  - Features an ergonomic design for easy cleaning and accurate measurements.

  - Reads less program corrections than i1Pro 2 with improved accuracy.

  - Provides real-time user feedback to ensure accurate measurement position and a self-check tool to adjust and correct minor shifts.

  - PANTONE Color Manager-software enables accurate capture and management of spot colors and helps users build palettes with the best matching PANTONE colors that are automatically extracted from their own images.

  - Includes download link to i1Profiler-software with basic and advanced modes for professionally calibrated and profiled monitors (including presets for video production workflows), projectors and scannere.

  - Supports high brightness (up to 5000 nits), enhanced broadcast metering, resulting in the best possible calibration and profiling of displays and projectors.

  - Easy upgrade to i1Publish-software to add full printer (RGB, CMYK, CMYK + all four) profiling and quality control features and camera profiling capabilities.

  - Easy transfer of licenses from i1Photo Pro 2 and i1Publish Pro 2.

  - Optimizes automated file creation in less time and material waste during production when combined with i1iO Generation 3 automated scan table.



  Specifications


  - Spectral range 380 - 730 nm

  - Physical sampling interval 3.5 nm

  - Optical resolution 10 nm

  - Spectral reporting 380 nm to 730 nm in 10 nm stepsDesigned for imagers who rely on accurate color for their displays and projectors, who want to track and verify display and print quality, and who need to capture spot color measurement, i1Basic Pro 3 is the answer.

  - Sample rate (Hz) 400 measurements per second

  - Measurement Geometry 45º/0º ring illumination optics, ISO 13655:2017

  - Measurement Aperture 4.5 mm (0.18") diameter (effective measurement aperture during scanning depends on application size and measurement speed)

  - Light source Full-spectrum LED light source
