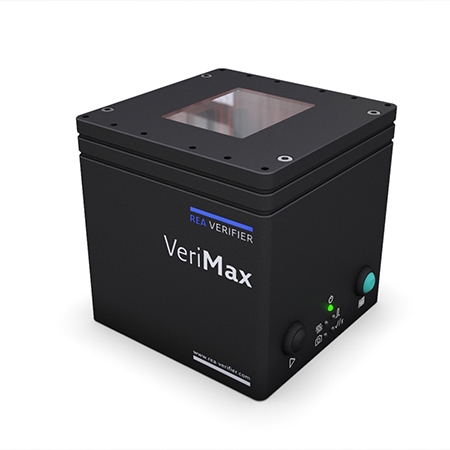

Description of REA VeriMax - 2D matrix code verifier demo-kit

• REA VeriMax is a verification system for 1D barcodes and 2D matrix codes, specially designed for fully integrated installation in production lines. Due to its two operating modes, the REA VeriMax can be used individually in the production line according to the requirements: Either for manual random verification or as an inline verification system.

  The more complex the codes, the more complex the task for an inline code verification system. REA VeriMax can reliably verify up to five complex codes per second inline. If the codes are simplified in their complexity, the verification speed of REA VeriMax increases per second too.

  Field of veiw, is 41 x 32 mm.

  Due to its small dimensions and with software individually programmed by the machine manufacturer, the REA VeriMax finds its place in all plants. The appropriate interfaces and the software for evaluating your codes come from REA.

  The measurement of optical codes according to defined angles, distances and illuminations enables accurate and reproducible measurement results and quality evaluations according to ISO/IEC standards.

  In addition to fully integrated installation in production lines, REA VeriMax can also be mounted on a rack as a stand-alone code verification system.



  Features


  - Contactless code verification with CMOS camera
  - Red light illumination 660 nm, 45° from four sides
  - Verification according to ISO/IEC 15415 for printed 2D matrix codes and ISO/IEC 15416 for printed 1D barcodes
  - Verification according to ISO/IEC TR 29158 (formerly AIM DPM-2006 guideline) for direct marking of 2D matrix codes (optional)
  - Verification according to GS1 specification according to GS1 Data Structure
  - Verification of optional parameters to optimize the printing process
  - Multilingual user interface and reports
  - Settings for user-defined profiles, for easy operation and faster selection
  - ISO/IEC 15418 / ANS MH10.8.2 Data structure analysis
  - Specific code selection to meet the requirements of the pharmaceutical industry
  - 24 Volt power supply for machine integration. A separate 24 V power supply is available for standalone operation/evaluation kits



  Specifications


  - Code verification system and measurement accuracy in accordance with ISO/IEC 15426-2 and ISO/IEC 15426-1
  - REA VeriMax Software for Windows included
  - Red light LED 660nm
  - Illumination angle 45°, red from four sides
  - Separate power supply for REA VeriMax 24V (excluded in OEM version, included in the evaluation set)
  - M12 Ethernet connection for GigE Vision communication (connection cable available as an option)
  - Camera resolution 1280 x 1024 pixels
  - The camera's focus and aperture are preset by the factory
  - Depth in field 0 up + 2 mm
  - Size: 120 x 120 x 120 mm (w/l/h) with keyboard 126 mm
  - Weight: 1560 g without connection cable and bracket
  - Windows 7 and newer, 64 bit support
  - ISO/IEC 15423: Please note that this performance standard is only valid for barcode and matrix code scanners. This does not apply to optical measuring instruments such as the REA Verifier product range. For verifiers, ISO/IEC 15426-x are the applicable performance standards.
  - ISO/IEC 15419: Please note that this performance standard is valid for barcode and matrix code labeling and code generation software, as well as for printers that print QR codes, data matrix codes and barcodes.
