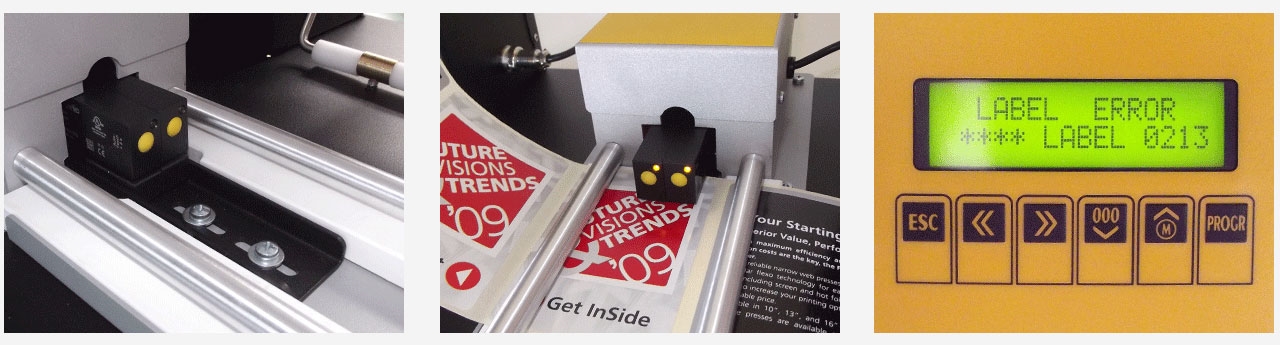

Description of Label Counter with sensor for missing label

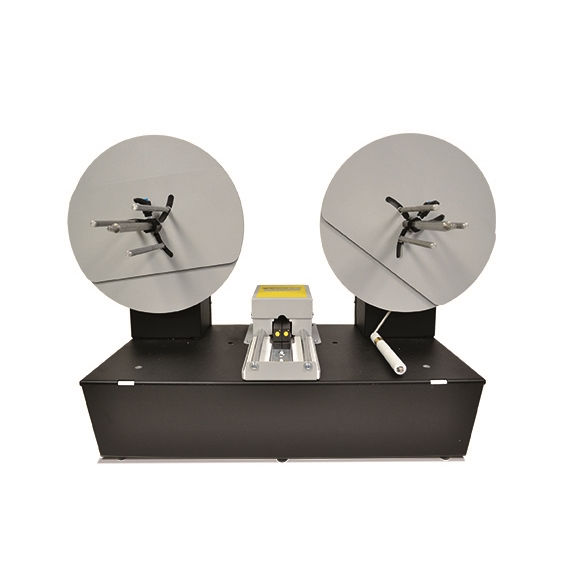

• Automatic Label Counters Series allows to count the labels on a roll, to rewind and unwind the labels on one machine, to rewind the labels onto different core sizes, to rewind small rolls of labels from a larger one and also to rewind small rolls with a preset numberof labels from a larger roll.

  This last feature is possible thanks to the setting of the preset labels' number through the electronic counter. Once the preset number of labels will be reached, the label counter will stop by uttering an acoustic signal. Both turrets of the label counter are motorized and it is possible to adjust the speed of rotation on the rewinder only while the unwinder has an automatic self-adjustment speed.

  Automatic Label Counters Series can handle labels up to 5" (127mm) wide and it can rewind and unwind rolls of labels with diameter up to 10" (250mm) on an adjustable core holder from 1.57" (40mm) up to 4.64" (118mm). It has a speed of 120 rpm.

  Automatic Label Counters Series is available in many different versions and each model is marked by its own code. Through the "configuration table", it is possible to select the version better fitting your needs. The Automatic Label Counters turns in one direction only, from left to right. From the unwinder to the rewinder.
•
